Product Details:
Contact Now
Detailed Product Description

Parameter Configuration
Product Series
HT-LCM
Product Model
LCM-1625
LCM-1630
LCM-1830
LCM-2030
LCM-2230
Customizable Model
Cutting Range         (W*L)
1.6m*2.5m
1.6m*3m
1.8m*3m
2m*3m
2.2m*3m
Size can be customized
Cutting Thickness
0.1mm——110mm (after vauum adsorption)
Maximum Speed
1500 mm/s
Cutting precision
± 0.1mm
Total Power
11KW
Power Supply
220V/380V , 50/60HZ
Operating System
Windows OS
File Format
cut , dxf , plt , iso ,pdf , ggt , gbr,hpgl
Applied Materials
Leather,Fabric,Textiles,Lace,Fur,Denim,Calico,PVC,Foam,Cardboard,Acrylic,Curtain,Carpet,Car interior,Gesket，etc.
Function
Cutting, Creasing, V-shape cutting/Grooving, Positioning, Marking
Vacuum Pump
22 Pa, 9KW
Automatic Feed
Optional
Main Accessories
Motor
Switch
Knife Drive
Guide Rail
Vision System
Direction Rack
Panasonic
DELIXI
maxon
HIWIN
Canon
German
Products Description

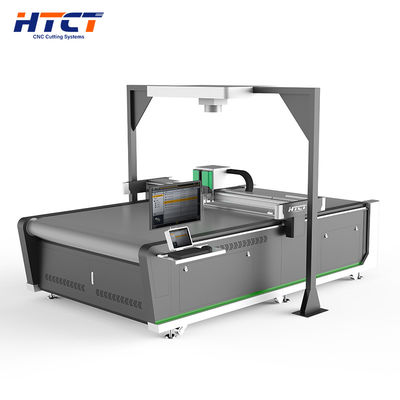

HTCT Automatic Vibration Knife Cutting Machine For Leather and Fabric

——This machine is a cutting flatbed specifically designed for leather and fabric,fully automatic computer control, one click design and leather or fabric layout, cutting thickness 0.1mm-70mm,suitable for single-layer and low multi-layer cutting.
——The replaceable blade is suitable for different cutting materials, maximum cutting speed 1500mm/s,cutting accuracy within 0.1mm.
——With the visual control system, it can achieve precise recognition and cutting of patterned leather and fabrics. ——The cutting process is smokeless and odorless, with automatic material receiving and feeding, saving manpower.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 0
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 2
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 4

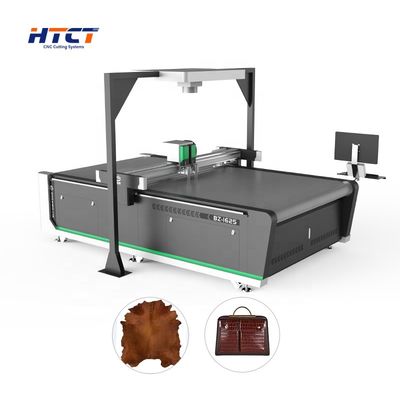

Automatic leather cutting machine
——Intelligent graphic layout software, it can achieve any shape you want to cut, material utilization rate 98%.
——High speed cutting blade, capable of achieving a cutting speed of 1.5 m/s, completely liberating manpower.
——Equipped with crawler conveyor, automatic feeding and receiving, completely save labor costs.
——High speed cameras can achieve precise positioning of cutting shapes and control cutting errors within 0.1mm.
——We are a real cutting machine factory with R&D and production capabilities,welcome visit!
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 6
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 8
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 10

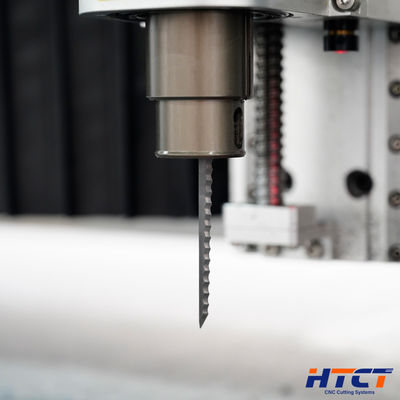

Replaceable Blade for Different Materials

—— Multiple cutting heads and blades can achieve precise cutting of all flexible materials, such as : Leather,Fabric,Woven,Cotton,Canvas,Hemp,Denim,Linen,Silk,Fur,Curtain,Carpet,SofaTextile,Foam,Asbestos,Fiberglass,Cork,Rubber,Corrugated Paper,Tarp,Acrylic, PVC,PTFE,Carton,Composite Material and so on.
——We welcome you to send us your samples（the postage can be borne by us）, and we will live stream the cutting process of the samples and the operation of the machine for you on site，for free. Contact us and have a try !
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 12
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 14
Click on the image above
· Tell us what material you'd like to cut ,we will show you the process of cutting the material live for free.
· We promise you the best quality & price in the whole network.Contact us this month and we will offer a 5% discount.
· You will start a professional procure experience you've never had before.
Service Expert : Victor.Lee
WhatsApp : +8615854931349
WeChat : +8615698281349
Email : htctcnc@163.com
Welcome to visit our factory ！
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 16
Efficient Cutting Workflow
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 18

Simple&Efficient Operation Process

——The HT2024-cutting software system we developed can design a complex set of leather templates within 3 seconds with just one click. ——Based on thousands of fabric cutting databases, our super algorithm can achieve one click automatic material layout, provide the optimal cutting path, and achieve a leather utilization rate of up to 98%.
——One click transfer of layout graphics files to the cutting machine for automatic cutting. After cutting, the material is automatically transported to the receiving table.
——The entire process operation only requires no more than 2 workers.

We provide three types of operation service tutorials:
1. Local on-site installation and training for engineers；
2. 7 * 24-hour remote live streaming guidance for installation and operation；
3. 40 GB video operation tutorial.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 20
Why Choose Us

Reform is the key to embracing the future，HTCT has been striving for this for 5 years,dedicated to improving the production efficiency of the flexible material cutting industry and serving global practitioners.We are almost the industry leader.

CNC flexible material vibrating knife cutting machine is a trend to replace traditional cutting methods under the current wave of Industry 4.0 reform.Compared to traditional manual cutting and laser cutting, CNC Vibrating knife cutting has a completely disruptive advantage.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 22
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 24

Laser cutting

Laser cutting will cause yellowing and scorching of the fabric & leather edges, requiring secondary processing, and will cause damage to the fabric & leather .also laser cutting will generate a large amount of smoke.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 26

HTCT cutting

· Fully automatic operation, saving labor.
· Intelligent layout with high material utilization
· No heat source blade cutting, precise and environmentally friendly
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 28

Manual cutting

The cutting accuracy of manual cutting is poor and the material layout efficiency is low, resulting in a large amount of material waste.Most important, manual cutting requires a lot of labor and time.
Details&Sevice
All parts are from top tier brands such as Omron, Delixi, Panasonic, etc., enjoy a warranty of more than 3 years.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 30
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 32
High strength integrated frame body, with load-bearing capacity of over 3 tons, does not require splicing or secondary adjustment during installation and use, can be used immediately upon power on.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 34
Aviation grade aluminum profile tabletop, standard with vacuum adsorption, making the material tightly adhere to the tabletop,ensuring smooth cutting.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 36
High efficiency max9 KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 38
Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 40
China Taiwan's HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 42
All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc，stable and durable, and all enjoy quality assurance.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 44
Professional CAD/CAM software, efficient material layout, easy operation, labor-saving, enjoy free upgrades and lifelong training
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 46
High speed visual recognition system, capable of achieving various working modes such as tracking cutting, projection without trajectory cutting, etc.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 48
For more details, click on the link above to contact us
Service Expert : Victor.Lee
WhatsApp : +8615854931349
WeChat : +8615698281349
Email : htctcnc@163.com

Welcome to visit our factory ！
LECTRA ZUND Digital Cutter Kongsberg bullmer cutting systems Eastman PGM iECHO JWEI RUIZHOU flatbed cutter
AOL Zhuoxing ZXT cnc knife cutting machine
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 50
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 52

7*24-hour service

You can experience our one-on-one butler service anytime, anywhere
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 54

Local service

Our engineers can provide on-site service before and after sales.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 56

Transportation

Wooden box shipping, convenient for sea transportation.

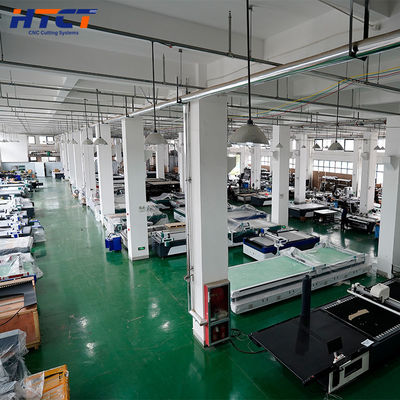

Factory Profile

Shandong HTCT CNC Equipment Co., Ltd.

HTCT founded in 2019, is a 5-year experienced factory specializing in the production and research and development of vibration knife cutting machines.

——The factory is located in Jinan High tech Zone, covering an area of 20,000 m2. Our product services include clothing fabric cutting, leather cutting, multi-layer fabric cutting, home textile fabric cutting, automotive interior cutting, advertising material cutting, composite material cutting, etc. We are a comprehensive flexible material cutting solution service provider and manufacturer.
——At present, we have 25 R&D engineers, 149 production technicians, 50 market service experts, and 31 overseas after-sales engineers. Our product services cover more than 80 countries and 1750 customers worldwide, with an annual output value of over 50 million US dollars.
——We specialize in providing customized product services based on customer production situations to help you solve production problems.
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 58
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 60
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 62
Digital Leather Hide Fur Rexine Bag Cutting Machinery Cutter Fur Leather Bag Cutting Layout Leather Cutting Machine 64
FAQ
Q: This is the first time I use this kind of machine, is it easy to operate?
A: Although the operation of the machine is simple, we still provide comprehensive training tutorials：1.We provide detailed instructional videos on 50G operations；2.we are always available to provide you with video connections;3.We provide overseas on-site services.
Q: How can I choose a suitable cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1.What materials are going to cut?
2.What's the largest size of original materials?
3.What's the thickness of materials?
Q:If the machine has problem in my place, how could I do?
A: We offer a three-year warranty，we could send free parts to you in warranty period if machines have any problem under "normal use".
Q: Can you design a machine for me depending on my requirements?
A: Of course, we will discuss details with you and give you our professional suggestion for the machine ensure the machine could
match all your requests with best cost performance.
